We have the same usability expectations from everything we’re interacting with, UIs or APIs. Therefore, the guidelines that we use for UI can also be translated to API. We’ve gone over the first 5 guidelines in a previous article. Now, it’s time for the rest.

6. Recognition rather than recall

UI: Recognizing something as familiar involves a minimum amount of cognitive energy and is triggered by the context. Recall implies retrieving details from memory and takes much more time. It’s easier to choose from a set of options, than to write those options from memory. A simple UI, using generally known icons is based on recognition. A command-line interface is based on recall. Information and functions should be made visible, intuitive and easily accessible.

The pencil icon is a symbol for editing, easy to recognize, independent of the app.

Make names clear and understandable

A variable name should say what it represents, not how it’s used: isLoading, animationDurationMs.

A class name should be a noun and should say what it represents: RoomDatabase, Field.

A method name should be a verb and should say what the method does: query(), runInTransaction().

7. Flexibility and efficiency of use

UI: Your application might be used by both inexperienced and experienced users. Create a UI that it caters to both of these types of users and allows them to adapt frequent actions. It is said that 20% of the features are used by 80% of the users. You need to create a balance between simplicity and power. Find out what those 20% are for your app, and make those parts of the app as easy and as simple to use as possible. Apply the principle of progressive disclosure and allow the rest of your users to access advanced features in a secondary screen.

The Wi-Fi settings defaults to basic options but also contains advanced options. It fits the needs of the user.

Build a flexible API

Users should be able to accomplish their tasks with the API efficiently and the API needs to be flexible. For example, when querying a database, Room provides different return values allowing them to do synchronous queries, use LiveData or, if they prefer, use APIs from RxJava 2.

@Query(“SELECT * FROM Users”)

// synchronous
List<User> getUsers();

// asynchronously
Single<List<User>> getUsers();
Maybe<List<User>> getUsers();

// asynchronously via observable queries
Flowable<List<User>> getUsers();
LiveData<List<User>> getUsers();

Put related methods in related classes

Methods placed in a class that has no direct relation to the code that the developer has already written are hard to find. Even more, “Util” or “Helper” classes that tend to group a lot of useful methods can be hard to find. When using Kotlin, the solution for this is to use extension functions.

8. Aesthetic and minimalist design

UI: The UI should be kept simple, containing only the information relevant for the user at that time. Irrelevant or rarely needed information should be removed or moved to other screens since their presence distracts the user and decreases the importance of the information that is indeed relevant.

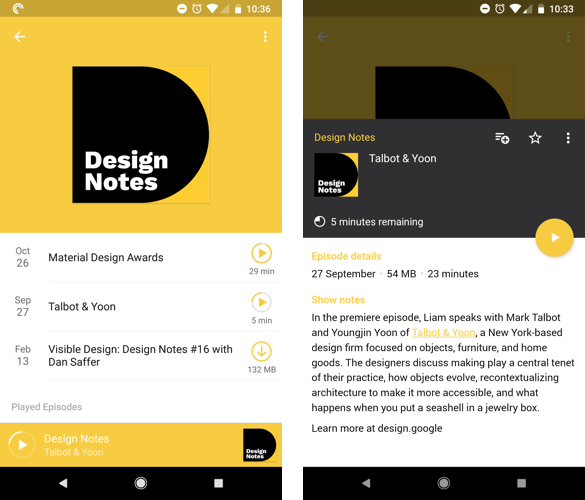

Pocket Casts app uses a minimalist design

In the episode lists screen, this podcast app shows minimum, contextual and relevant amount of information: if the user hasn’t downloaded an episode, the download size and the download button are visible; if the user has downloaded it — the duration and a play button. At the same time, all of these and more are present in the details screen for the curious user.

API: API users have one goal: to solve their problem faster with the help of your API. So make their path as short and direct as possible.

Don’t expose internal API logic

API: Unnecessarily exposing internal API logic can confuse the user and lead to bad usability. Don’t expose methods and classes that are not needed

Don’t make the user do anything that the API could do

API: Starting with 22.1.0, the Android Support Library provides the RecyclerView suite of objects to enable creation of UI elements based on large data sets or data that changes frequently. Whenever the list changes, the RecyclerView.Adapter needs to be notified with the data that was updated. That lead to developers creating their own solutions for computing the differences between lists. In the 25.1.0 version of the Support Library, this boilerplate was drastically reduced by the DiffUtil class. Moreover, DiffUtil uses an optimized algorithm, reducing the amount of code you need to write and increasing performance.

9. Help users recognize, diagnose and recover from errors

UI: Provide your app’s users with error messages that help them recognize, diagnose and recover from errors. Good error messages contain a clear indication that something has gone wrong, with a precise description of the problem in polite and human readable language, containing constructive advice on how to fix the problem. Avoid showing a status code or an Exception class name. The user won’t know what to do with that information.

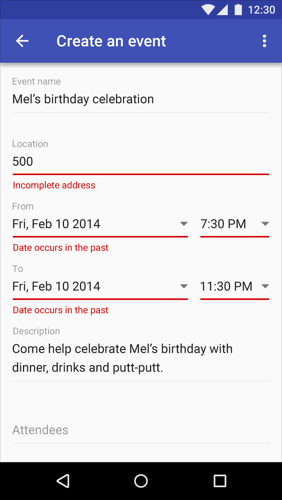

Error messages when creating an event. Source

Show an error on an input field as soon as it’s defocused, don’t wait until the user presses a button to submit the entire form, or, even worse, wait for the errors to come from the backend. Use the TextView’s capabilities to display an error message. If you’re creating an event form for example, prevent your users from creating events in the past by setting constraints directly to the UI widgets.

Fail fast

API: The sooner a bug is reported, the less damage it will do. Therefore, the best time to fail is at compile time. For example, Room will report any problems with incorrect queries or wrongly annotated classes at compile time.

If you can’t fail at compile time, then try to fail at run time as soon as possible.

Exceptions should indicate exceptional conditions

API: Users shouldn’t be using exceptions for control flow. Exceptions should only be used for exceptional conditions or incorrect API usages. Use return values to indicate this, where possible. Catching and handling exceptions is almost always slower than than testing a return value.

For example, trying to insert a null value in a column that has a NON NULL constraint is an exceptional condition and leads to an SQLiteConstraintException being thrown.

Throw specific exceptions. Prefer already existing exceptions

API: Developers already know what IllegalStateException or IllegalArgumentException mean, even if they don’t know the reason this happened in your API. Help your API users by throwing existing exceptions, preferring more specific exceptions to general ones, with a good error message.

When creating a new Bitmap via createBitmap method, you need to provide elements like the width and the height of the new bitmap. If you’re providing values <= 0 as arguments, then the method will throw an IllegalArgumentException.

Error messages should precisely indicate the problem

API: The same guidelines for writing error messages for the UI apply to the API also. Provide detailed messages that will help your users fix their code.

For example, in Room, if a query is run on the main thread, the user will get a java.lang.IllegalStateException: Cannot access database on the main thread since it may potentially lock the UI for a long period of time. This indicates that the state in which the query is being executed (main thread) is illegal for this action.

10. Help and documentation

UI: Your users should be able to use your application without any documentation. For complex or very domain-specific apps, this might not be possible so, if documentation is needed, make sure it’s easy to find, easy to search, and that it answers common questions.

Elements like “Help” and “Send feedback” are usually placed at the bottom of the navigation drawer

API should be self documenting

API: Good naming of methods, classes and members makes an API self documenting. But no matter how good an API is, it won’t be used without a good documentation. This is why every public element — method, class, field, parameter — should be documented. Whatever is easy and obvious for you, as an API developer, might not be as easy and obvious for your API users.

Example code should be exemplary

API: The code examples have several roles: they help the users understand the purpose of the API, the usage, and also the usage context. Code snippets are intended to demonstrate how to access the basic API functionality. Tutorials teach developers a specific aspect of the API. Code samples are more complex examples, usually an entire application. Of these three, the biggest problems appear when you don’t have code samples because developers are missing the bigger picture — how all of your classes and methods work together and how they should work together with the system.

If your API becomes popular, chances are you will have thousands of developers using those examples and those samples will become the model of how your API should be used. Therefore, every mistake you make will come back to bite you.

We’ve learned a lot along the years about the usability of user interfaces; we know what our users need and how they think. They want UIs that are intuitive, efficient, correct, that help them do a specific task, in an appropriate way. All of these concepts go beyond UIs and are applied to APIs also, because developers are users too. So let’s help them (and us) and build usable APIs.

APIs should be easy to use and hard to misuse — it should be easy to do simple things, possible to do complex things and impossible, or at least difficult, to do wrong things. Joshua Bloch — source

References

• 10 Usability Heuristics for User Interface Design
• http://www.apiusability.org/
• Myers, B. A., & Stylos, J. (2016). Improving API usability. Communications of the ACM, 59(6), 62–69. PDF
• Bloch, J. (2006). How to design a good API and why it matters. Companion to the 21st ACM SIGPLAN symposium on Object-oriented programming systems, languages, and applications. ACM. PDF
• Ellis, B., Stylos, J., & Myers, B. (2007). The factory pattern in API design: A usability evaluation. Proceedings of the 29th international conference on Software Engineering. IEEE Computer Society. PDF
• Robillard, M. P. (2009). What makes APIs hard to learn? Answers from developers. Software, IEEE, 26(6), 27–34. PDF
• Scheller, T., & Kühn, E. (2015). Automated measurement of API usability: The API Concepts Framework. Information and Software Technology, 61, 145–162. PDF
• Preventing User Errors: Avoiding Conscious Mistakes
• Error Message Guidelines
• Material Design Patterns and Guidelines
